Enables ALL NAV-900 Autopilot options including CAN steer and APMD (Autopilot Motor Drive). This license is not required for Autopilot if a Nav Controller II or III is used as an external device Notes: •CAN steer is also upgradable to support the NextSwath functionality • Some vehicle manufacturers will require an additional machine based unlock for CAN Steer capabilities, contact your machinery dealer or service agent for further details. • Guidance licenses will stay in the NAV-900 even if it is combined with other components in future.

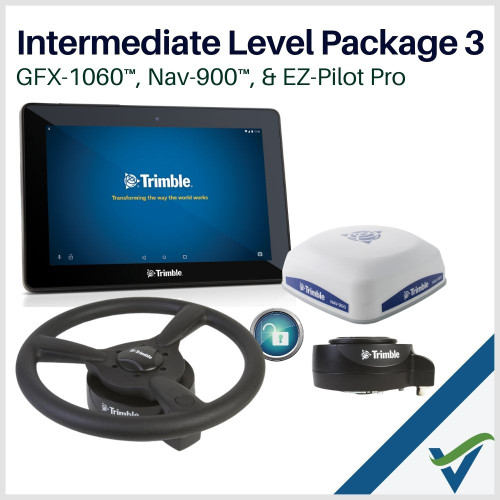

The GFX-1060™ display is Trimble Agriculture’s latest 10-inch (25.6 cm) Android™-based display for controlling and executing all in-field work through the Precision-IQ™ platform. With powerful loading and processing speeds, this robust display makes handling even the most complex farm operations easy.
The Trimble Nav-900™ guidance controller is our most advanced GNSS receiver to date, built for maximum uptime and a wide range of accuracy options from basic to high precision. It is designed to mount on the roof of most agricultural vehicles to provide positioning and guidance, including autosteer. Every new purchase of a NAV-900 guidance controller now includes Trimble’s leading CenterPoint RTX positioning service for the first year. Experience the easiest, most robust way to get repeatable < 2.5 cm (1 in) high-accuracy performance.
Constellations tracked:
GPS....................................L1 C/A, L2C, L2E, L5
GLONASS..........................L1 C/A, L1P, L2 C/A, L2P, L3 CDMA
SBAS..................................L1 C/A, L5
Galileo ................................E1, E5A, E5B
BeiDou (COMPASS)...........B1, B2
Correction Satellites..........................CenterPoint® RTX, WAAS, EGNOS, MSAS
Corrections streams supported:............CMR+, sCMR+, sCMR+ with SecureRTK, CMRx,
